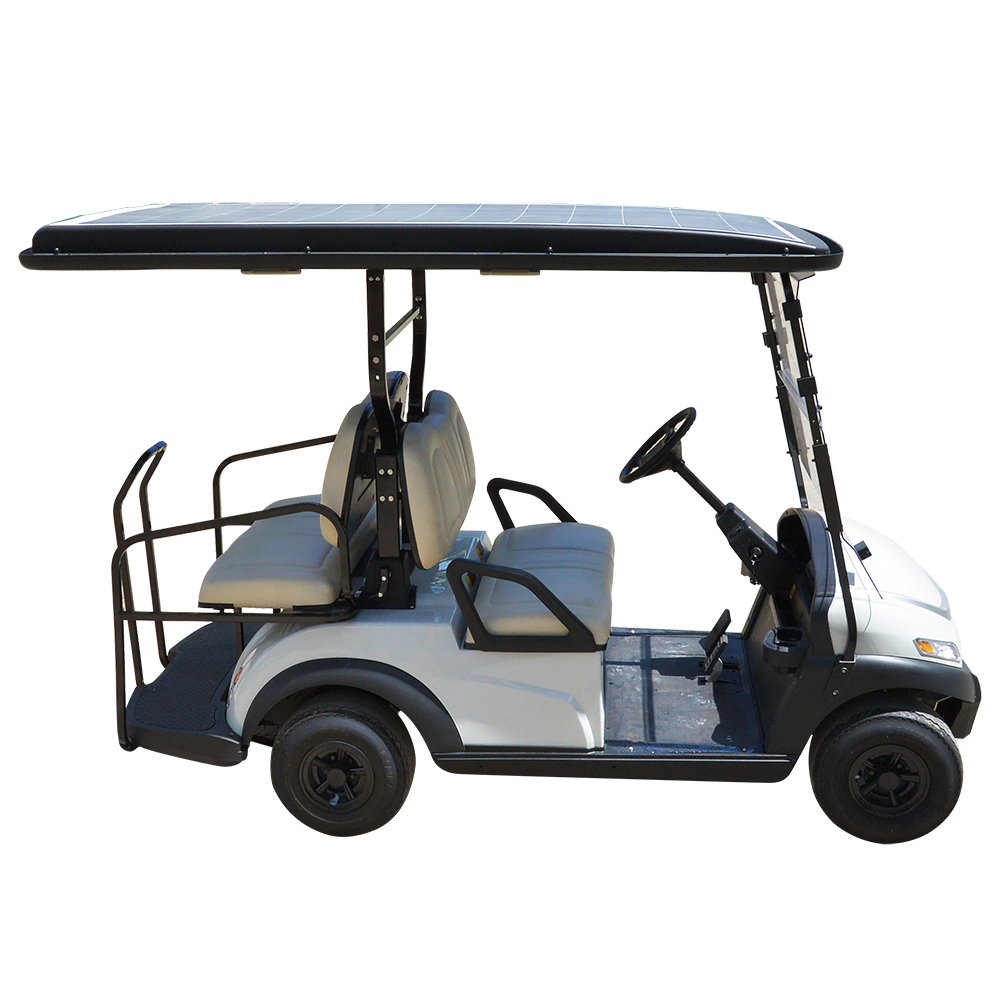

As part of the ZED Solar Electric Vehicle fleet, the G-Series also benefits from green energy to maintain a charge in the battery. Designed for the everyday driver in mind, the G-Series has stylish bodywork which, together with ample space for passengers and clubs, means a smooth ride.
Max Speed
Limited to 25km/h (Programmable)
Body Structure
Aluminium-alloy frame

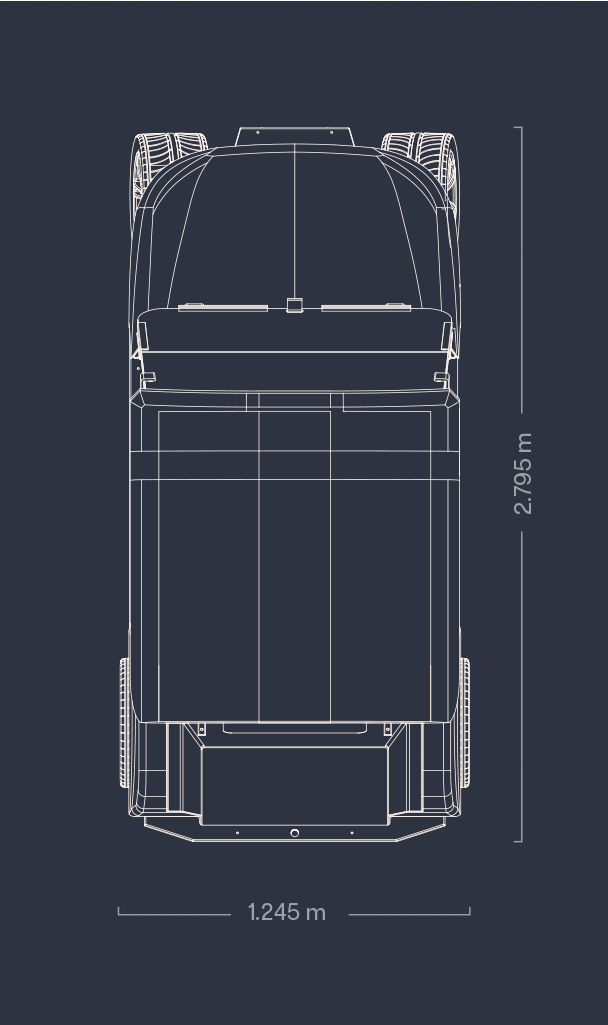

Body Size (L x W x H)
2795 x 1245 x 1280 mm
Total Weight
Approximately 430kg
Range
Approximately 60km (flat terrain, no load)
Maximum Climbing Angle:
21.8 degrees
Battery Type
Lithium
48V Nominal
Rated Capacity
4.5kWh
Charging Time
< 4 Hours (Using Onboard Charger)
Power Consumption
6 kWh / 100km without Solar input
5.25 kWh / 100km with Solar input*
Type of Motor
KDS AC, 5 kW
Suspension Type
Front suspension: Macpherson independent suspension
Rear suspension: Laminated leaf spring and telescopic hydraulic shock absorbers
Brake System
4-wheel hydraulic drum brake & electromagnetic brake & electronic parking
Controller
Curtis 48V Motor Controller
